Meniscus Cylindrical Lenses

Meniscus Cylindrical Lenses

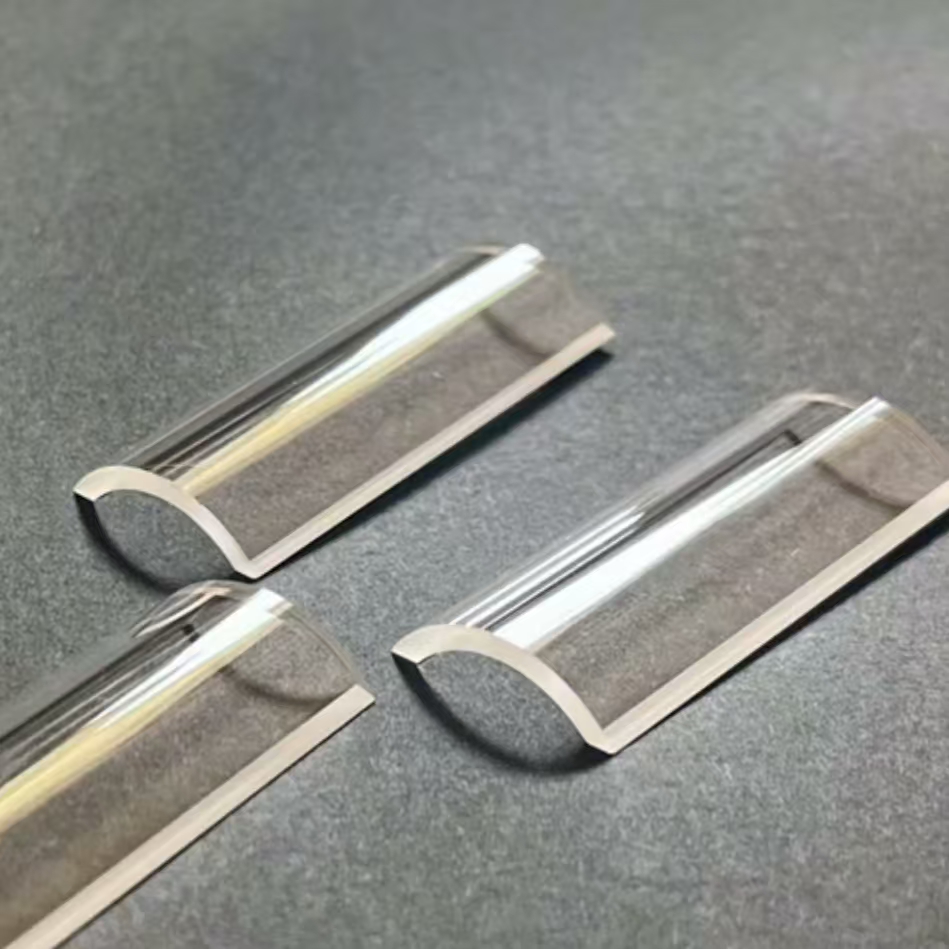

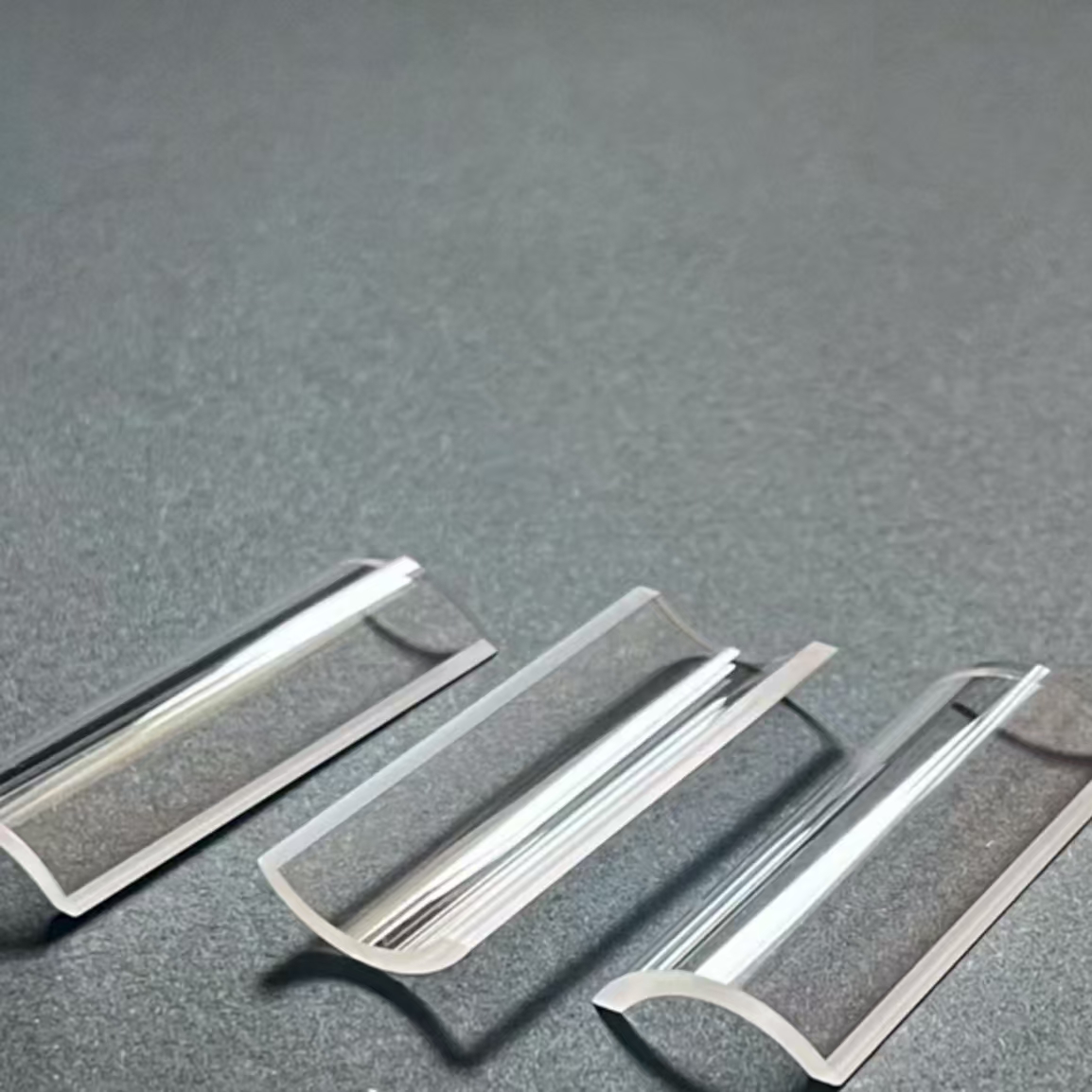

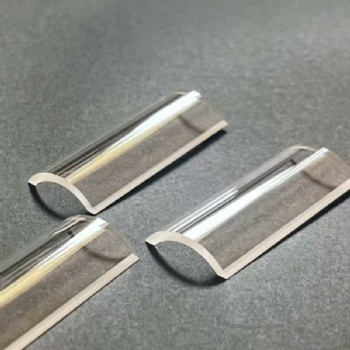

He Rui optics' Cylindrical meniscus lens are concave-convex lens, where the concave and convex surface is build along a curvature axis with each its own radius of curvature.

Description

Material	Schott、Ohara、Hoya、CDGM(BK7,fused silica,H-ZF13,fused silica,sapphire...)
Size	Customized
Thickness	Customized
Diameter Tolerance	±0.10
Thickness Tolerance	±0.2 mm
Aperture	30% (per one surface)
Surface Quality (Scratch-Dig)	60-40/40-20/20-10 (Customized)
Used	lmaging or Focusing (Customized)
Shape	Mensicus
Centration	<3′
Clear aperture	>= 90%central of the diameter
Wavelenghth	according to your requires
Coating	Customized

Wavelength Range	Substrate Material
180nm-8.0μm	Calcium Fluoride (CaF2)
185 nm-2.1 um	UV Fused Silica
200 nm- 5.0 um	Sapphire
200 nm- 6.0 um	Magnesium Fluoride (MgF2)
220 nm to >50 um	CVD Diamond Windows
230 nm- 1.1 um	UV Fused Silica. Textured Antireflective surface
250 nm- 1.6 um	UV Fused Silica, for 45° AOI
250 nm- 26 um	Potassium Bromide (KBr)
350 nm- 2.0 um	N-BK7
600 nm- 16 um	Zinc Selenide (ZnSe)
1.2- 8.0 um	Silicon (Si)
1.9- 16 um	Germanium (Ge)
2- 5 μm	Barium Fluoride (BaF2)

If you have any need,please contact us sales@hr-optics.com.
