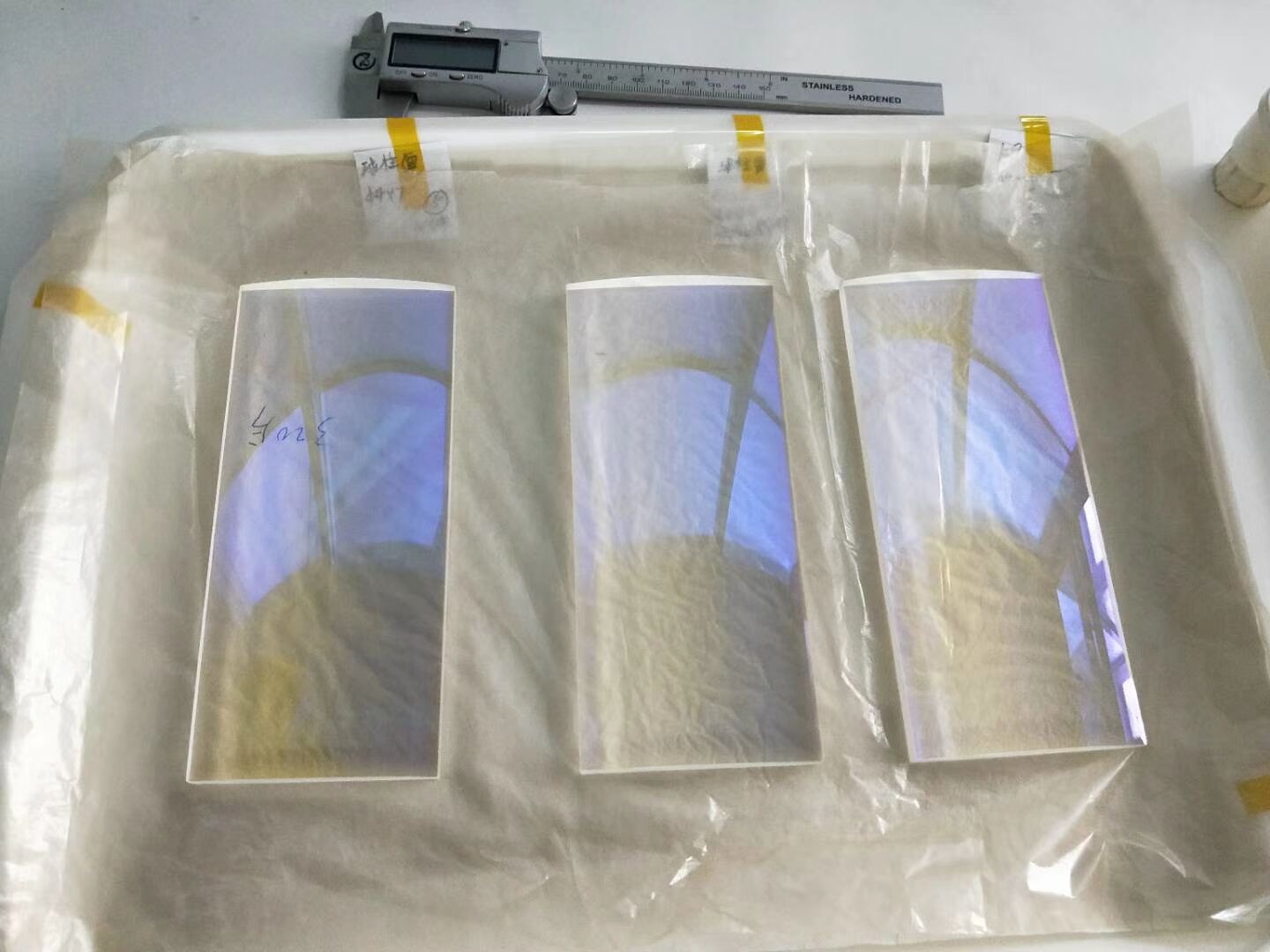

Big Size cylindrical lenses

He Rui Optics can produce a variety of specifications and different radii, using different glass material (Schott, Ohara, CDGM, Fused Silica, MgF2, CaF2, ZnSe, ZnS etc.).

Plano-Convex Cylindrical lens, Plano-Concave Cylindrical lens, Bi-Convex Cylindrical lens, Double Concave Cylindrical lens, Meniscus Cylindrical lens. We also can produce special Cylindrical lenses, such as Achromatic Cylindrical lens, Parabolic Mirrors, Cylindrical Ellipsoidal Mirror and double curved Cylindrical lens, such as Aspheric Cylindrical lens and Cylindrical lens group.

In addition, we even can produce the requirements of complex shape Cylindrical lenses, such as fan-shaped lenses, the Off-Axis Cylindrical Mirrors, angled Cylindrical Mirrors. Requests can include special Glass materials including ultraviolet and infrared quartz or crystals like fluorinated calcium.

• Substrate Material: Schott, Ohara, CDGM, Corning Fused Silica and JGS1, JGS2

• Shape: P-Concave, P-Convex or Aspheric

• Focal length: +/-1%

• Surface Quality: 20-10 (after coating)

• Surface figure: λ/4 @ 633nm

• Angle: +/-5″

• Clear Aperture: >90% of central dimension

• coating：AR@400-700nm,R≤0.5% or as per your need

• Singlet, Doublet, and Triplet: Cylindrical lenses with one, two, or three lens components.

• Plano-Convex and Plano-Concave Lenses: Featuring flat faces and convex or concave cylindrical surfaces, respectively.

• Sphero-Cylindrical Lens: Combining a sphere-like surface with a cylindrical one.

• Biconvex or Biconcave Lens: With both sides being either concave or convex.

• Achromatic Cylinder Lens: Designed to reduce chromatic aberration, focusing light with multiple colors in one direction.

For any inquiries, please feel free to sales@hr-optics.com
