Well-suited for infrared optical dome applications, sapphire transmits up to eighty percent of light in the 2-5 µm wavelength range. It is extremely resistant to scratching and abrasion, making it an excellent choice for defense applications and high-pressure environments, such as underwater camera systems for deep sea exploration.
High strength, high hardness, high temperature resistance
Abrasion resistance, corrosion resistance
Maximum diameter 600mm
Good light transmission performance (150 ~ 5500 nm)
Excellent electrical insulation performance, and good mechanical properties
| Material | optical glass,BK7 ,Fused silica, Ge,Si,CaF2, ZnSe,ZnS,BaF2,MgF2,LiF,KBr,Nacl,Corning Eagle XG,sapphire,Corning 7980,Corning 7979,Corning 8655 JGS1,JGS2,JGS3,Low iron glass,soda lime glass,Gorilla glass,ITO glass,FTO glass,borofloat 33(BF33) |
| Diameter | 1-600mm |
| Thickness | 0.2-50mm |
| Diameter Tolerance | ±0.01 mm(as per your need) |
| Center Thickness Tolerance | ±0.01mm(as per your need ) |
| Surface Quality | 80/50,60/40,40/20,20/10 |
| Clear Aperture | >90% |
| parallelism | +/-30'' |
| Coating | Custom,AR coating,BBAR coating, DLC coating, AF/AS coating,Hydrophobic Coating, ITO/FTO coating. AR+AF/AS coating,AR+DLC coating,ITO/FTO+AR coating |
| Bevel | 0.1~0.3mm x 45° |
Can be customized according to your requirements.

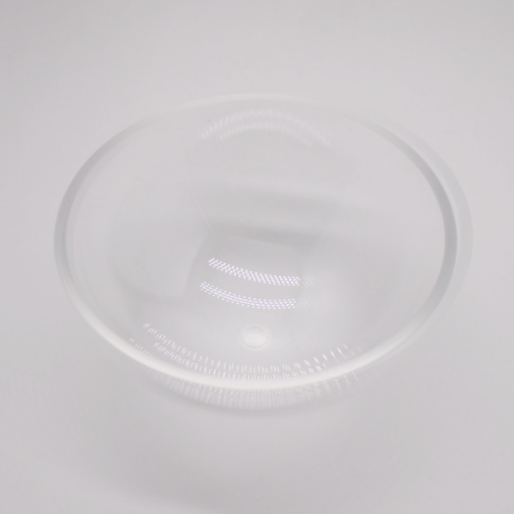

Hemisphere Sapphire Dome , Hyper hemisphere sapphire dome, Aspheric sapphire dome ，Dome Lens with flange,Dome lens with Holes
He Rui Optics produces a variety of precision optical components with experienced engineers and advanced equipment.We can produce standard and customized optical lens,mirror,filter,prism,windows,crystal,wafers.If you have any requirement,please contact us
Tags: Optical Lenses Optical windows Optical Prisms Optical filters Optical Mirrors Optical Crystals Silicon Wafers Silicon lens cylindrical lenses laser optics infrared optics uv optics
