He Rui optics' Deviate Beam or Image by 90° or 180°
Material: N-BK7, UV Fused Silica, CaF2, or ZnSe

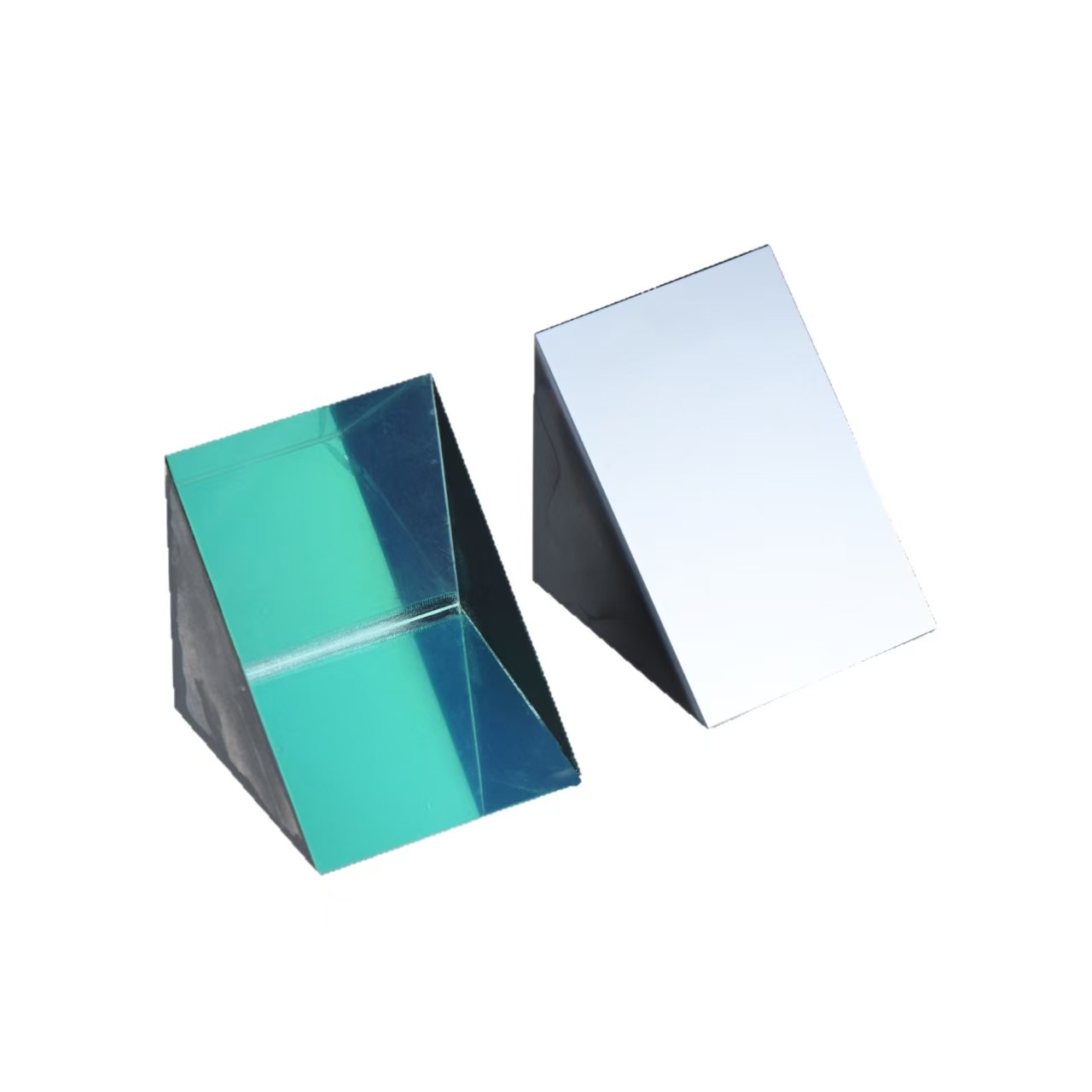

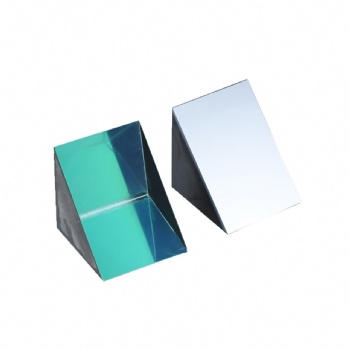

Right Angle Prisms produce inverted or reverted left handed images, depending on the orientation of the prism.
Right Angle Prisms in a variety of sizes, substrates, or reflection or anti-reflection coating options.
Anti-reflection coatings, including UV-VIS, MgF2, VIS 0°, VIS-NIR, or NIR I, are available for the Prism’s faces to decrease reflectivity in the Ultraviolet (UV), Visible, or Infrared (IR).
the most commonly used prism is the 45° - 90° - 45° prism, known popularly as the right angle prism. It can be used in many ways to achieve different results pertaining to image parity or deviation and is named so for the angles on its triangular faces. The most common application of the 45° - 90° - 45° prism is to treat it as a right angle prism, which has only a single reflection that deviates the incident ray by 90°. The produced image will then become left-handed, but depending upon the position of the prism, can be inverted or reverted
| Material | optical glass/BK7/K9/UV fused silica/CaF2/ZnSe |
| Dimension | 0.75-200mm |
| Dimensional Tolerance | ±0.01mm |
| Thickness & Tolerance | ±0.05mm |
| Angle Tolerance | ±3' |
| Surface Flatness | 1/4Lambda |
| Effective aperture | >90% |
| Surface Quality | 60/40, 40/20 20/10 or better |
| Bevel | 0.1-0.3mmx45° |
| Coating | Al coating R>95% (Customized as per your need) |
Can be customized according to your requirements,please contact us: sales@hr-optics.com
He Rui Optics produces a variety of precision optical components with experienced engineers and advanced equipment.We can produce standard and customized optical lens,mirror,filter,prism,windows,crystal,wafers.If you have any requirement,please contact us
