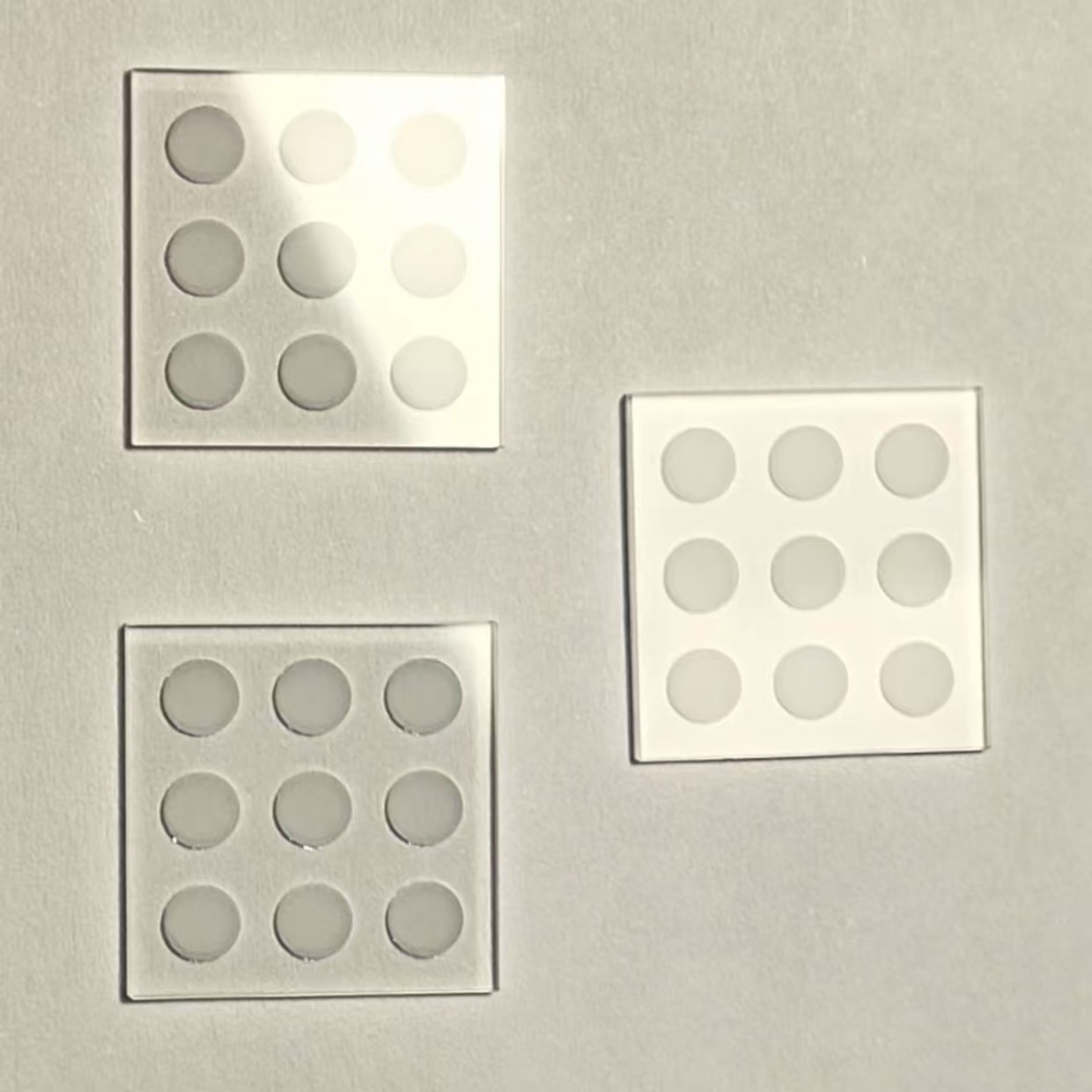

Optical hole window glass

An optical window with a hole is a flat, transparent component featuring a precision-drilled central or offset opening, used to transmit light while allowing mechanical feeds, secondary optics, or probes to pass through.

Inquiry Now

Description

IR MATERIAL WAVELENGTH.jpg

Material	optical glass,BK7 ,Fused silica, Corning Eagle XG,sapphire,Corning 7980,Corning 7979,Corning 8655 JGS1,JGS2,JGS3,Low iron glass,soda lime glass,Gorilla glass,ITO glass,FTO glass,borofloat 33(BF33)
Diameter	1-500mm
Thickness	0.1-50mm
Diameter Tolerance	±0.01 mm
Thickness Tolerance	±0.01mm
Surface Quality	80/50,60/40,40/20,20/10
Clear Aperture	>90%
parallelism	<3 arcmin
Coating	Custom,AR coating,BBAR coating, DLC coating, AF/AS coating,Hydrophobic Coating, ITO/FTO coating. AR+AF/AS coating,AR+DLC coating,ITO/FTO+AR coating
Bevel	0.1~0.3mm x 45 degree

Can be customized according to your requirements,

Optical hole window glass

Optical hole window glass
