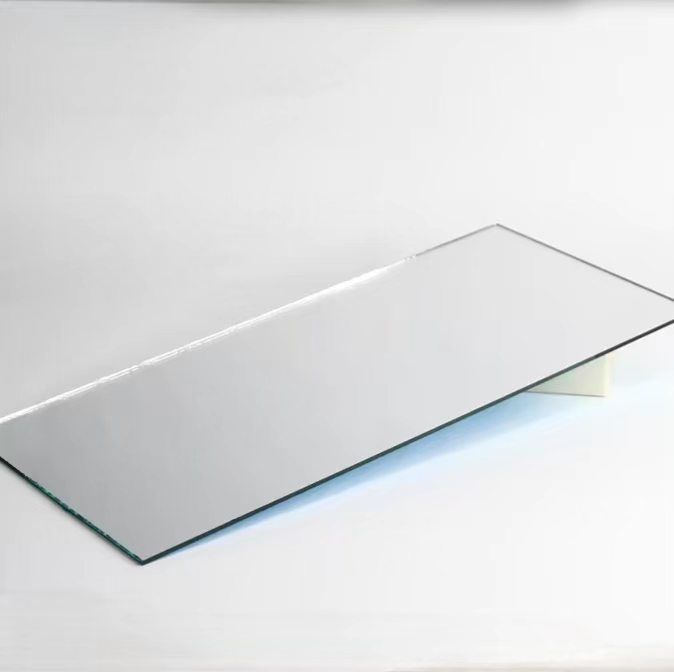

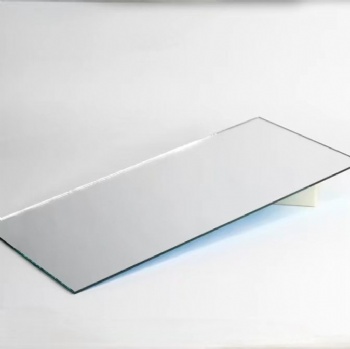

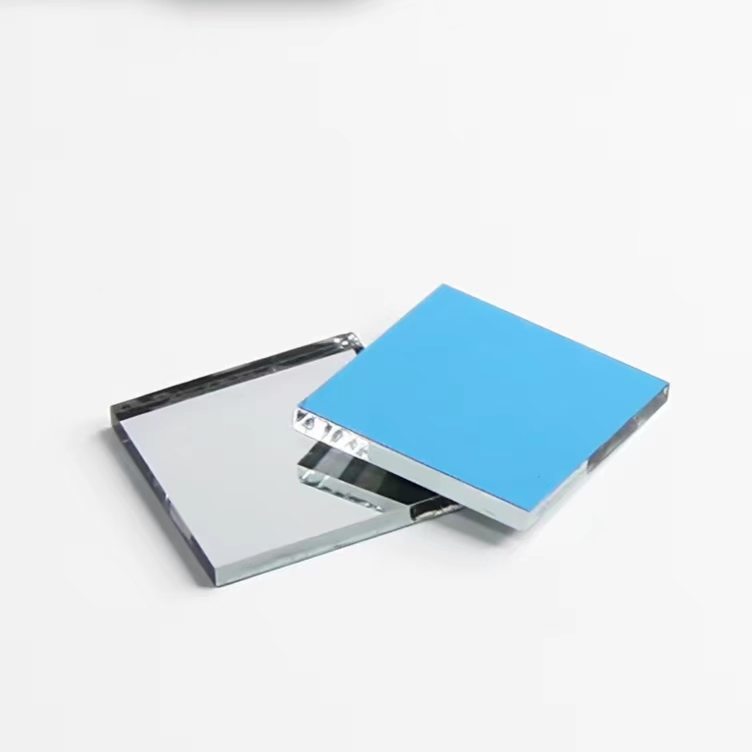

A plane mirror is a thin, flat piece of glass that is lined with a highly reflective metallic coating on one side of the mirror. When a ray of light hits that metallic surface, the light will reflect off of it.
AI (UV) : | Rmax>85%200nm-300nm |
| Al (VIS) : | Rmax> 90%400nm-750nm |
| Ag (NIR) : | Rmax>97%500nm-12um |
| Au(NIR) | Rmax>97%500nm-12um |
| Shape Tolerance: | +0.0±0.1mm |
| Thickness Tolerance: | ±0.1 mm |
| Finish: | 10/5~60/40 |
| Effective Aperture: | >90% |
| chamfer: | <0.2mm*45° |
| Surface Shape : | λ/10~ λ/2 |
| Can be customized as per your need,price is also good | |
He Rui Optics produces a variety of precision optical components with experienced engineers and advanced equipment.We can produce standard and customized optical lens,mirror,filter,prism,windows,crystal,wafers.If you have any requirement,please contact us
