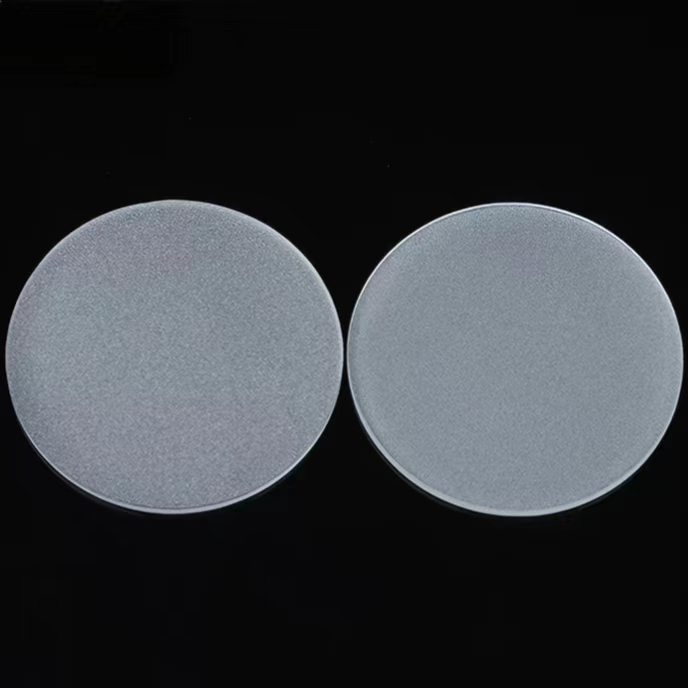

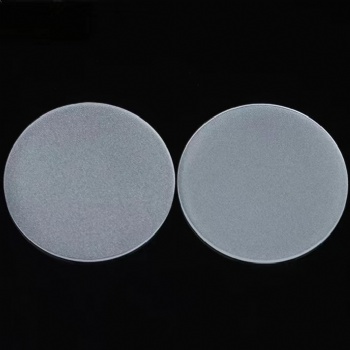

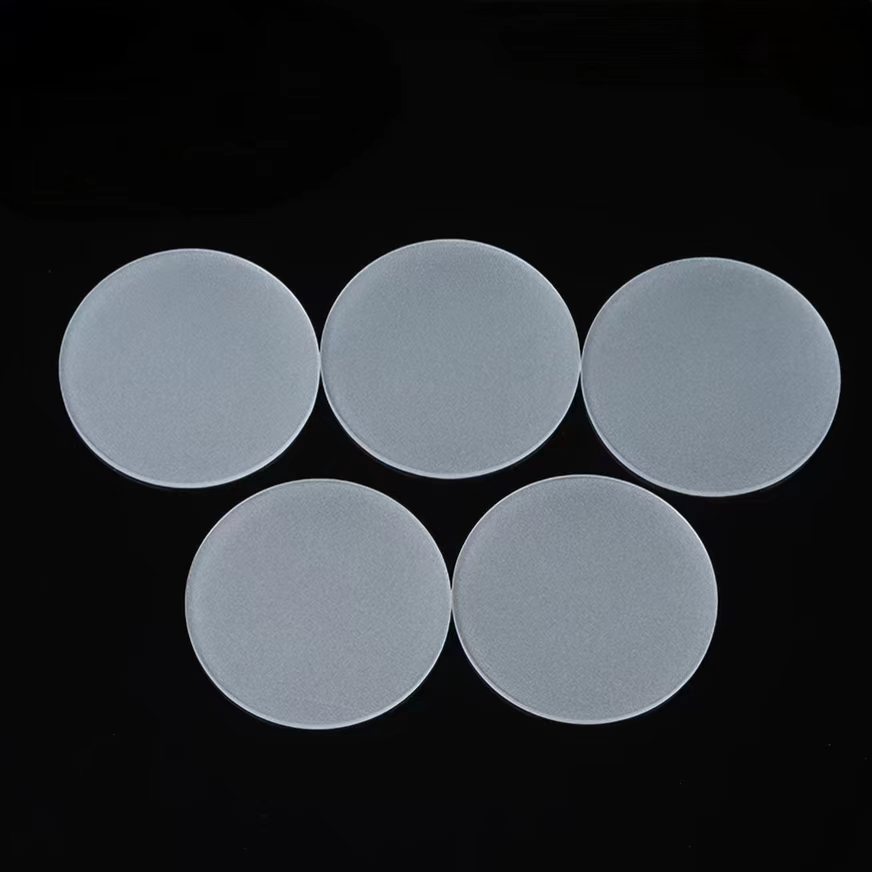

Undergoing two orthogonal passes during this sandblast process yields an even diffusion across the surface. The scattering is a compromise of low scatter loss and medium diffusion. UV Fused Silica Ground Glass Diffusers are typically applied for use in screens, illuminator diffusion, and targets.UV Fused Silica Ground Glass Diffusers are comprised of high tolerance, quality ground glass, making them ideal for a variety of industrial applications.
| Material | optical glass,BK7 ,Fused silica, JGS1,JGS2,JGS3,Low iron glass,soda lime glass,borofloat 33(BF33) |
| Diameter | 1-500mm |
| Thickness | 0.1-50mm |
| Diameter Tolerance | ±0.01 mm |
| Thickness Tolerance | ±0.01mm |
| Surface Quality | 80/50,60/40,40/20,20/10 |
| Clear Aperture | >90% |
| parallelism | <3 arcmin |
| Coating | Custom |
| Bevel | 0.1~0.3mm x 45 degree |
He Rui Optics produces a variety of precision optical components with experienced engineers and advanced equipment.We can produce standard and customized optical lens,mirror,filter,prism,windows,crystal,wafers.If you have any requirement,please contact us
