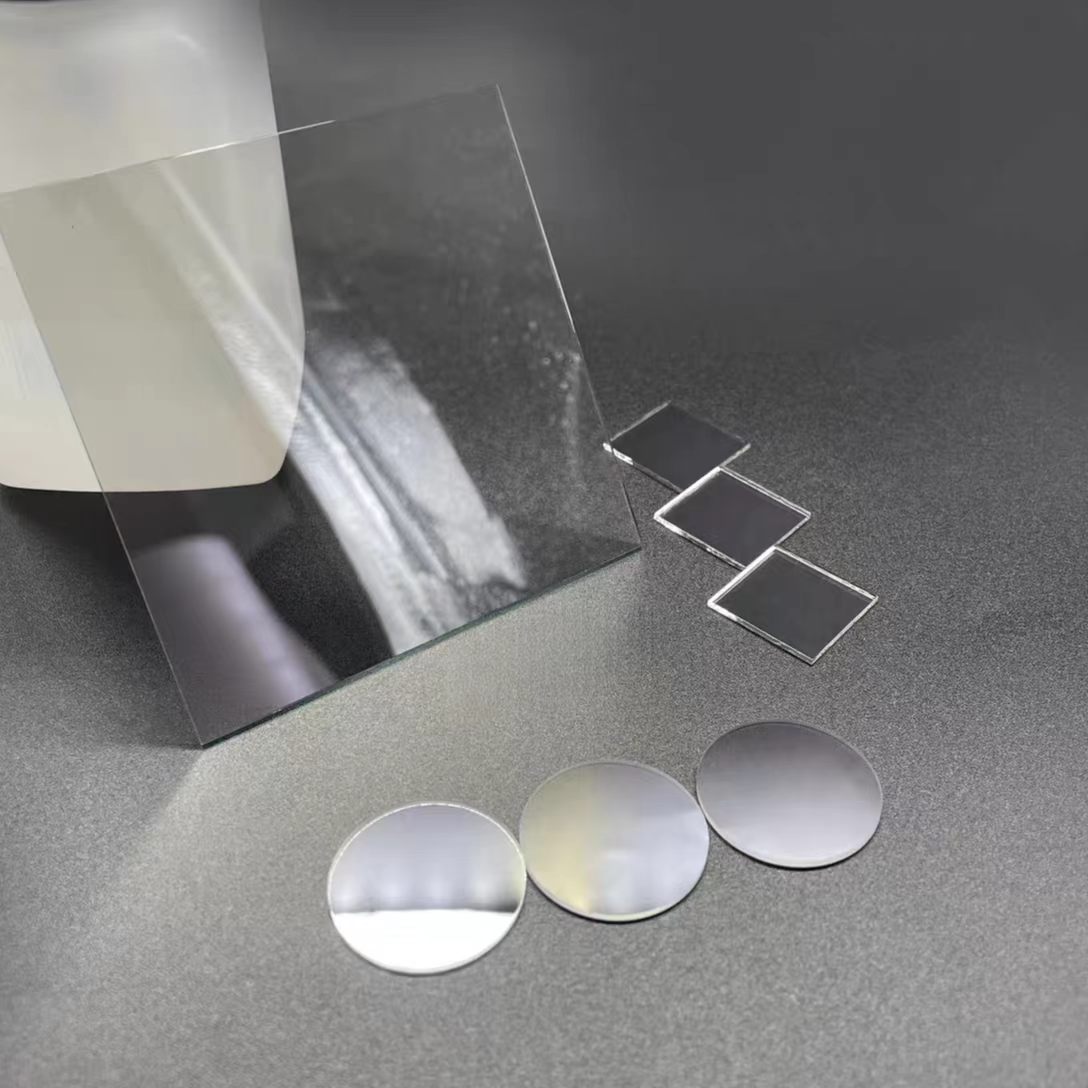

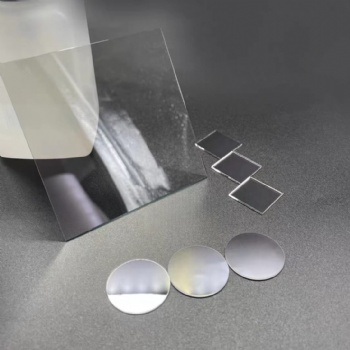

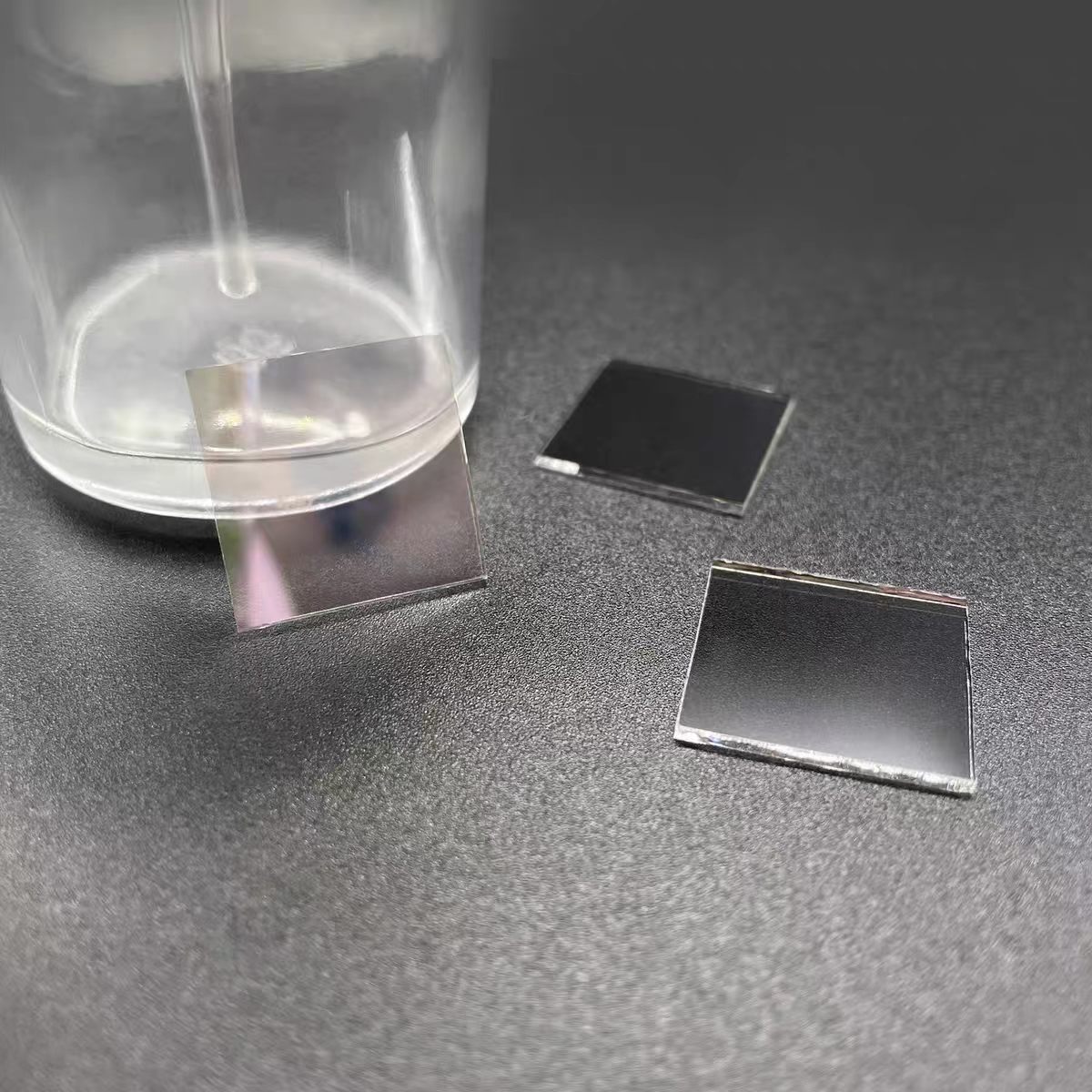

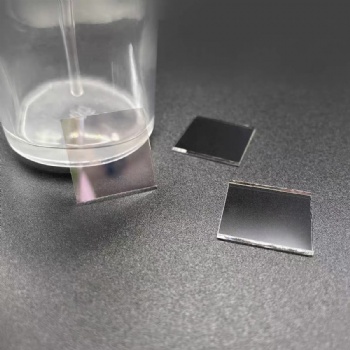

Plate Beamsplitters are used to split incident light to 2 different wavelengths, a section of the light striking is transmitted while the other section is reflected.Beamsplitter plates are commonly used as key components in optical instruments, projection systems, imaging systems, optical display systems, and optical measurement systems. They can split light at different intensities based on varying wavelengths and polarization directions, and are widely used in optical equipment, biochemistry and medical instruments, and other photoelectric sensing devices。
| Material | optical glass,BK7 ,Fused silica, Corning 7980,Corning 7979,Corning 8655 JGS1,JGS2,JGS3,Low iron glass,soda lime glass,Gorilla glass,ITO glass,FTO glass,borofloat 33(BF33) |
| Diameter | 1-500mm |
| Thickness | 0.1-50mm |
| Diameter Tolerance | ±0.01 mm |
| Center Thickness Tolerance | ±0.01mm |
| Surface Quality | 80/50,60/40,40/20,20/10 |
| Clear Aperture | >90% |
| parallelism | +/-30'' |
| Coating | Custom,AR coating,BBAR coating, DLC coating, AF/AS coating,Hydrophobic Coating, ITO/FTO coating. AR+AF/AS coating,AR+DLC coating,ITO/FTO+AR coating |
| Bevel | 0.1~0.3mm x 45 degree |
Can be customized according to your requirements
He Rui Optics produces a variety of precision optical components with experienced engineers and advanced equipment.We can produce standard and customized optical lens,mirror,filter,prism,windows,crystal,wafers.If you have any requirement,please contact us
