Ultraviolet Glass


He Rui optics' color glass filters are made from Schott (or equivalent) color glass. They may be used to eliminate UV radiation and permit the visible part of the spectrum to pass. Color glass filters are the simplest components which can be used to shape the spectral distribution of an optical system. They can be used to modify the output of a source or the responsivity of a detector

short-wave cut-off ultraviolet (UV) optical filter glass

UV22 UV24 UV28 UV30 UV32 UV34 UV36 L-38

Material:ZJB220 ZJB240 ZJB260 ZJB280 ZJB300 ZJB320 ZJB340 ZJB360 ZJB380
Thickness0.2-3mm, or please specify
Size Tolerance:±0.1mm
Thickness Tolerance:±0.1mm
Surface Quality:60/40
Clear Aperture:>85% of central circular dimension
Customizable as per your request

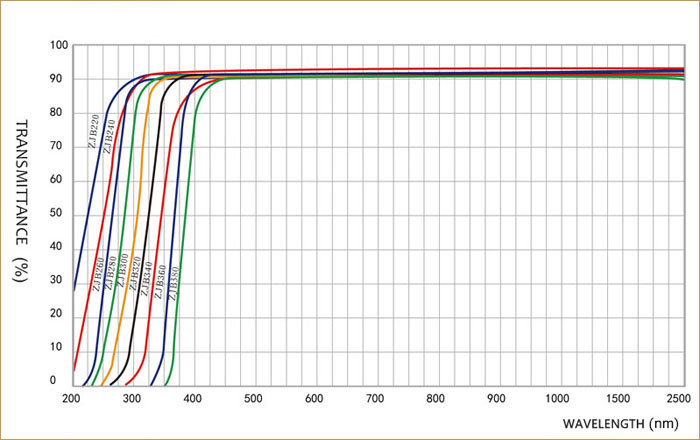

Ultraviolet Glass filters.jpg
